PCWES211

Nominal size DN: 15 ~ 20, 15 ~ 25
Connection mode: internal thread, socket welding, flange
Nominal pressure PN: PN40
Pressure difference range: MPa: 0.1 to 2.8
PMA/TMA PMa/℃ : 2.8/425
Shell material: WCB
Download PCWES211
Features
1. The spherical seal is used to increase the wear resistance, and the spool is "free floating" in the spool bracket to avoid rigid collision when closed.
2. There is a water seal and lifting mechanism inside the bucket, so there is no steam leakage.
3. The top of the bucket is provided with an overflow vent, which can effectively prevent the phenomenon of steam lock and air blockage (non-condensing high temperature air can also be excluded).
4. Can withstand high back pressure (up to 90%), water shock resistance.
5. Designed 360° rotary joint and built-in filter, easy to install and clean, the installation should ensure that the trap shell does not tilt.
Uses: Used in steam conveying pipeline and medium and low pressure steam heating equipment.

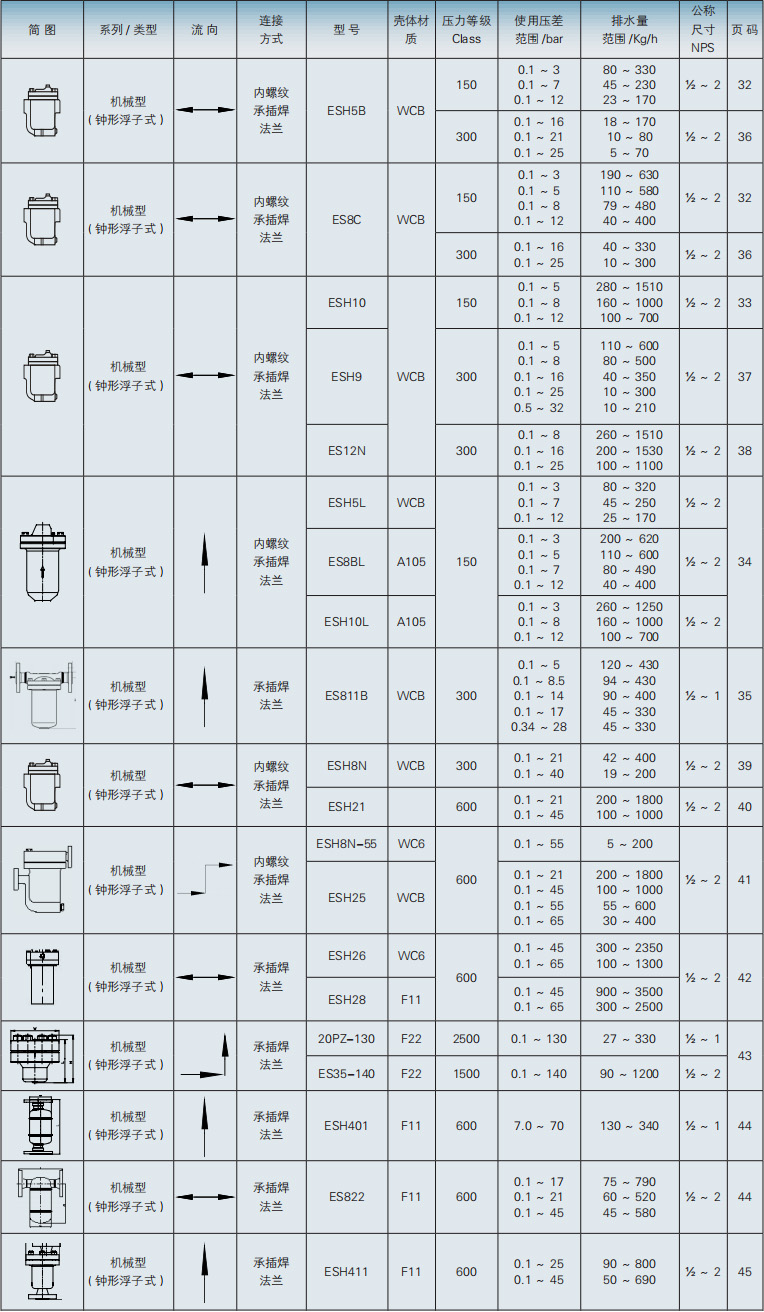

选型速查表
