SAV3(SAV7)

Nominal size DN: 15 ~ 25 15

Connection mode: internal thread RC NPT
Pressure difference range: Mpa: 0.1 to 1.6
Nominal pressure PN: PN25
PMA/TMA MPa/℃ : 1.7/204
Shell material: 304

Download SAV3(SAV7)
Features
1. The valve intima box is a temperature-sensing element made of special materials. High compressive strength, strong resistance to water shock, good temperature sensitivity, so sensitive action.

2. The opening and closing of the valve are controlled by the change of the state of the temperature-sensitive liquid. The volume is small and the displacement is large.

3. Can work normally in a wide range of pressure changes.

4. It can be installed horizontally or vertically.

5. Can be used as steam system exhaust valve.

Usage: Widely used in steam tracing pipe network with small condensing water and instrument tracing and small heating equipment to block steam drainage.

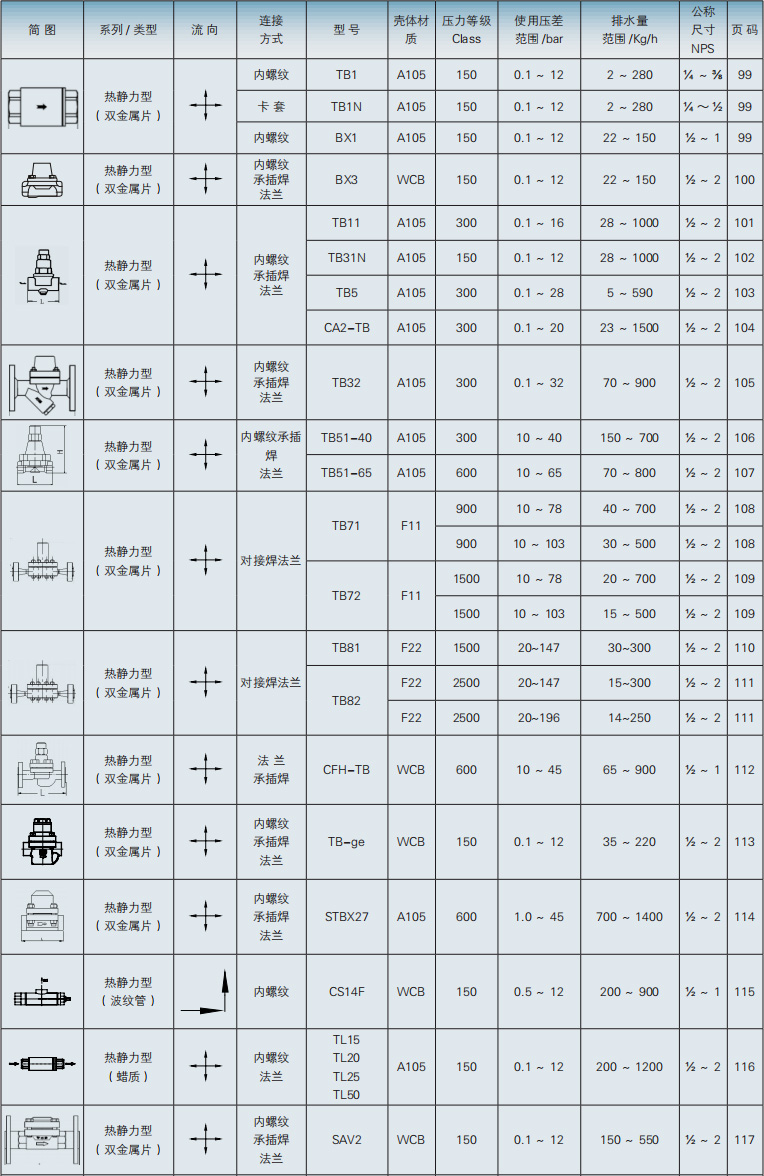

选型速查表
