SAV1

Nominal size DN: 20 ~ 25, 32 ~ 50
Connection mode: internal thread RC NPT
Pressure difference range: Mpa: 0.1 to 1.6
Nominal pressure PN: PN25
PMA/TMA MPa/℃ : 1.7/204
Shell material: 304
Download SAV1
Features

1. The valve intima box is a temperature-sensing element made of special materials. High compressive strength, strong resistance to water shock, good temperature sensitivity, so sensitive action.

2. The opening and closing of the valve are controlled by the change of the state of the temperature-sensitive liquid. The volume is small and the displacement is large.

3. Can work normally in a wide range of pressure changes.

4. Unique angular installation.

5. Can be installed at any Angle. Can be repaired online.

Uses: Widely used in all kinds of steam equipment and steam tracing pipeline and heating system, can also be used as steam storage tank, cavity heat exchanger and other automatic exhaust valve.

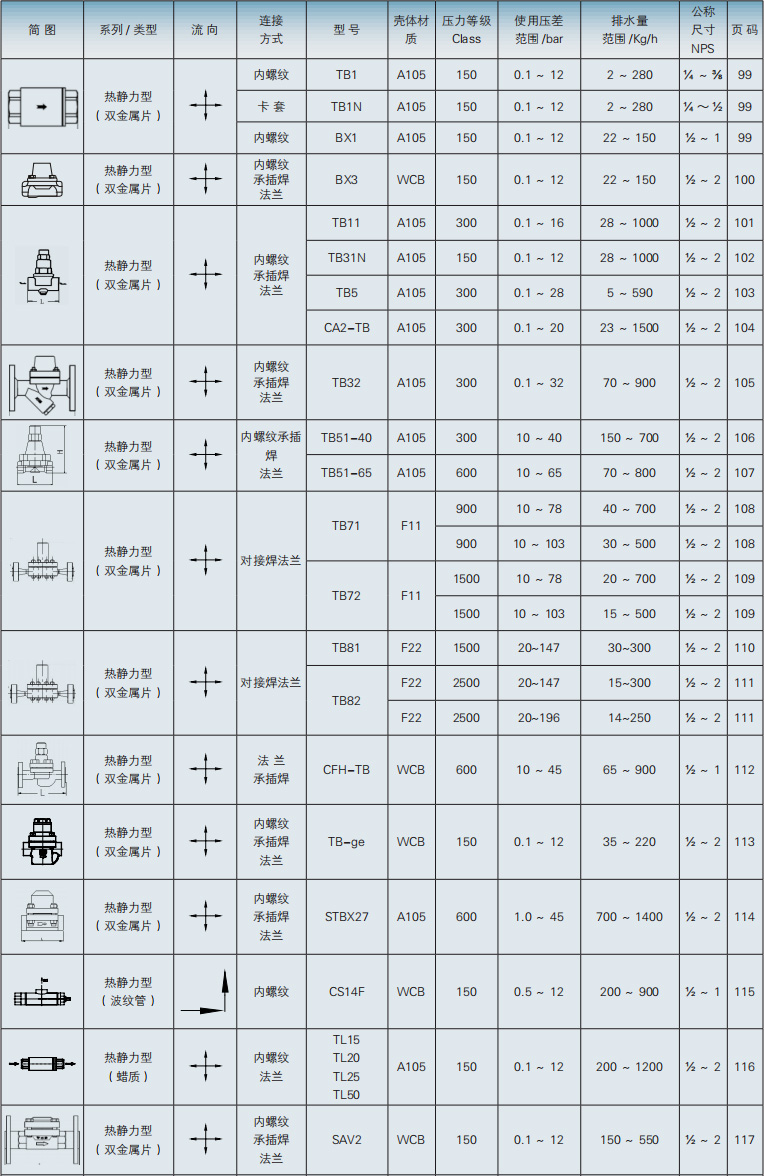

选型速查表
