TB32

Nominal size DN: 15 ~ 20 25 15 ~ 50

Connection mode: internal thread, socket welding, flange
Nominal pressure PN: PN25
Pressure difference range: MPa: 0.01 ~ 3.2
PMA/TMA PMa/ ° C: 3.5/399
Shell material: A105


Download TB32
Features

1. Bimetal sheet with the steam temperature change control valve opening, there is always high temperature condensate in front of the valve, no steam leakage, energy saving effect is good.

2. It can quickly eliminate the air and low temperature condensate in the early stage of steam.

3. The negative pressure valve is closed to play the role of return valve.

4. Anti-freeze, water shock, durable.

5. Compact structure, can be installed in any direction.

Uses: Used in steam main, steam tracing pipeline, small steam equipment, etc.

Note: The front end of the trap is preferably not insulated within 1m.

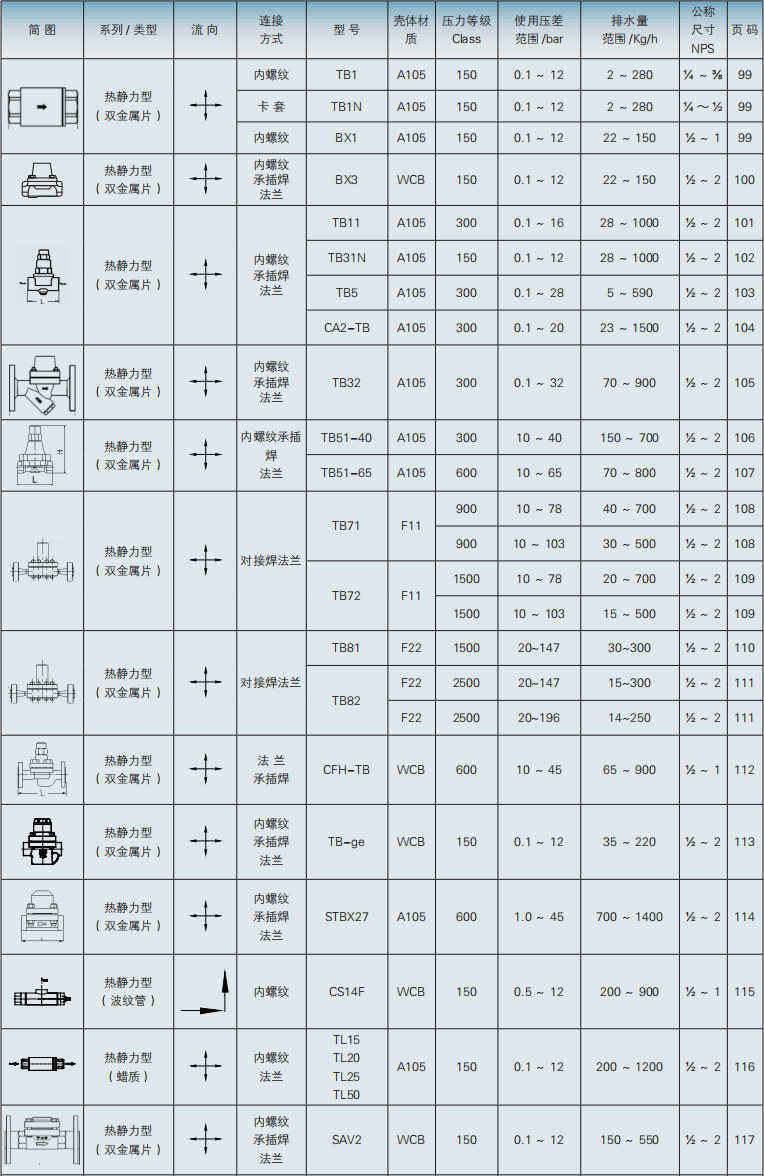

选型速查表
