TB12N(CA2F-TB)

Nominal size DN: 15 ~ 20 20 32 ~ 50

Connection mode: internal thread, socket welding, flange
Nominal pressure PN: PN25 PN40
Pressure difference range: MPa: 0.01 ~ 1.6 0.01 ~ 2.0
PMA/TMA PMa/℃ : 1.7/260 2.1/427
Shell material: A105


Download TB12N(CA2F-TB)
Features

1. Use a unique SCCV closing method, durable.

2. Water shock resistance, good air discharge performance, no noise, easy adjustment, fast opening.

3. Accurate and reliable operation, no steam leakage.

Uses: Used in steam main, steam tracing pipeline and heating equipment.

Note: The front end of the trap is preferably not insulated within 1m. In order to accurately adjust the factory status, the user must provide the on-site working pressure and set the opening valve temperature, if not provided, our company's CA2-TB is 0.5Mpa, 80℃; TB12N is adjusted to the factory condition at 0.5Mpa and 100℃.

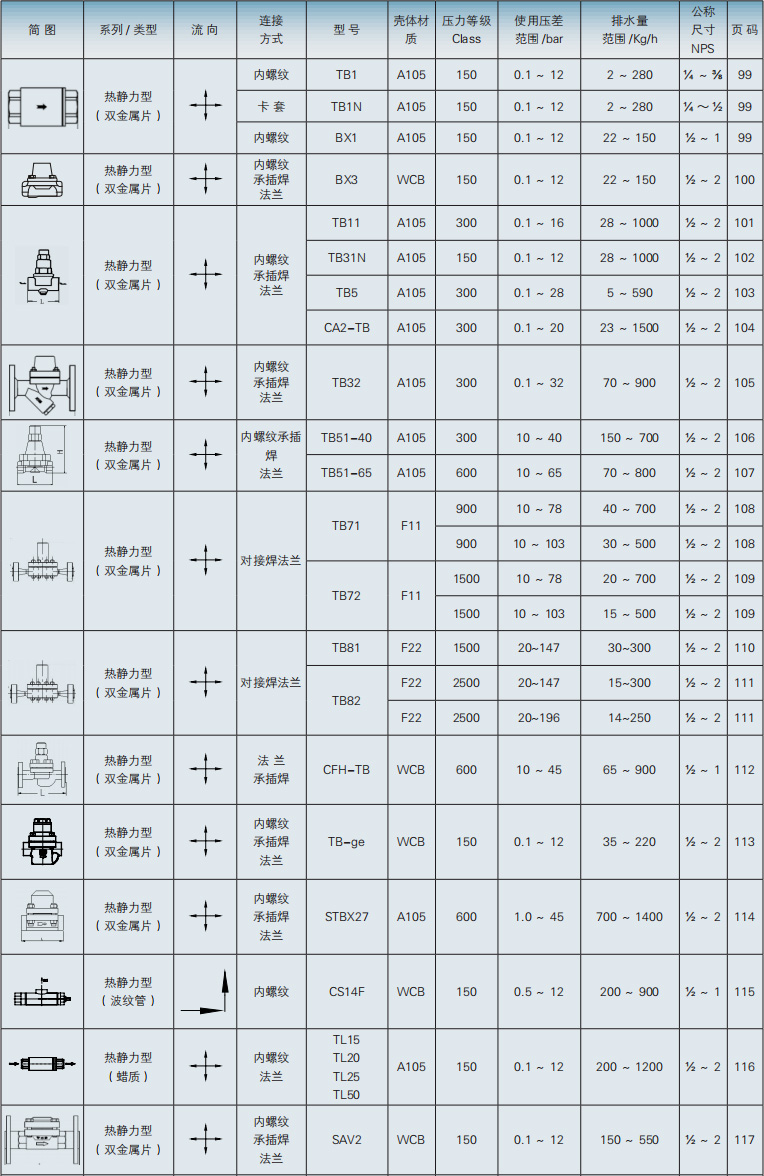

选型速查表
