GW8(GW12 GW30)

Nominal size DN: 80 ~ 100 80 ~ 100 80 ~ 150

Connection mode: flange
Nominal pressure PN: PN16 PN16 PN25
Pressure difference range MPa: 0.01 to 1.0 0.01 to 1.0 0.01 to 1.6
PMA/TMA PMa/℃ : 1.08/350 1.08/350 1.76/350
Shell material: 20#


Download GW8(GW12 GW30)
Features
1. Double balanced double seat design, large displacement.

2. The opening of the valve is freely adjusted, and the condensate can be continuously discharged with the change of the inflow.

3. High performance float design, durable pressure, long service life.

4. Built-in automatic air discharge valve, effectively prevent air blockage, quick start. Compact structure, easy maintenance.

Uses: Widely used in petroleum, chemical, metallurgy, electric power, food, paper and other industries of large steam heating equipment.

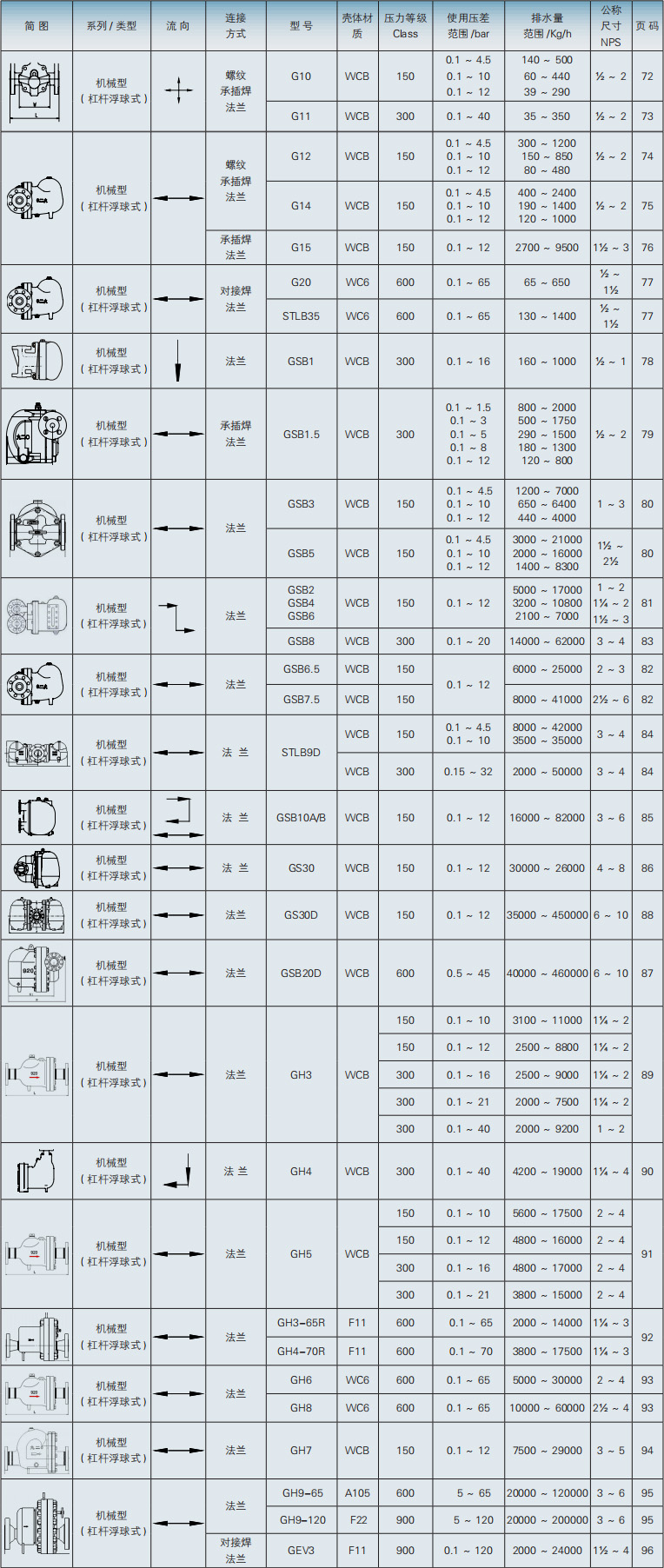

选型速查表
