G40

Nominal size DN: 80 ~ 150

Connection mode: flange
Nominal pressure PN: PN16
Pressure difference range: MPa: 0.01 ~ 0.6
PMA/TMA PMa/℃ : 0.66/450
Shell material: 20#


Download G40
Features

1. The use of non-valve body, single seat, low pressure large displacement technology, float lever increase device, open and close the valve labor saving, and can control its opening, can achieve small volume and large capacity continuous drainage.

2. Good sealing performance, low air leakage rate, significant energy saving effect.

3. External manual air exhaust device, quick start, no air blockage, continuous discharge of condensate.

Application: Widely used in petroleum, chemical, metallurgy, electric power, food, paper and other industries of large low-pressure steam equipment.

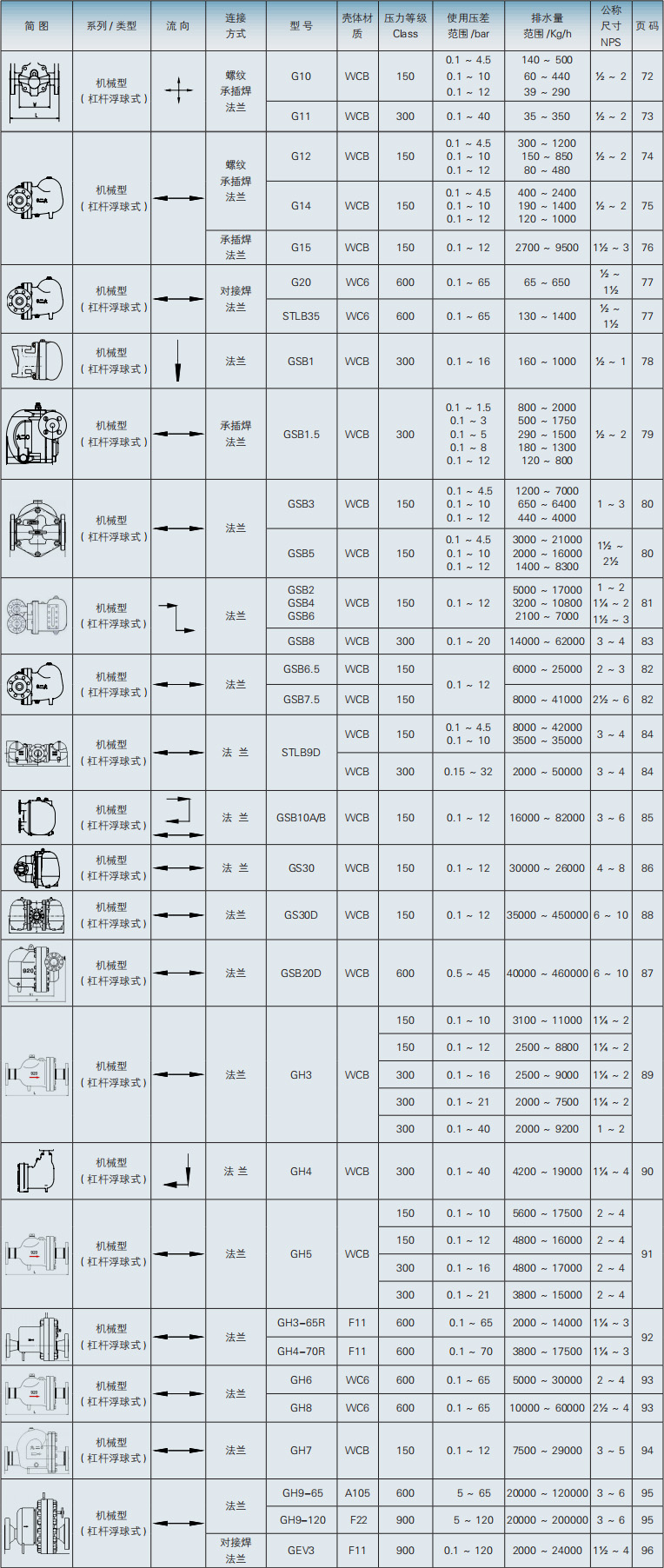

选型速查表
