JSS1(J4N)

Nominal size DN: 15 ~ 25, 32 ~ 50, 15 ~ 50

Connection mode: internal thread, socket welding, flange
Nominal pressure PN: PN25 PN40 PN63
Pressure difference range: MPa: 0.01 to 1.6
PMA/TMA PMa/℃ : 1.7/260 2.6/399 3.0/300 4.7/371
Shell material: WCB


Download JSS1(J4N)
Features
1. High precision grinding stainless steel float, improve the compressive strength and sealing performance, corrosion resistance.

2. The only moving part is the float ball, which works reliably and has a long service life.

3. Equipped with automatic air exhaust device to prevent air blockage and start quickly.

4. The condensate can be discharged continuously, and the emission noise is small.

Purpose; Used in saturated steam main, heat tracing line, steam heating equipment and condensate recovery system.

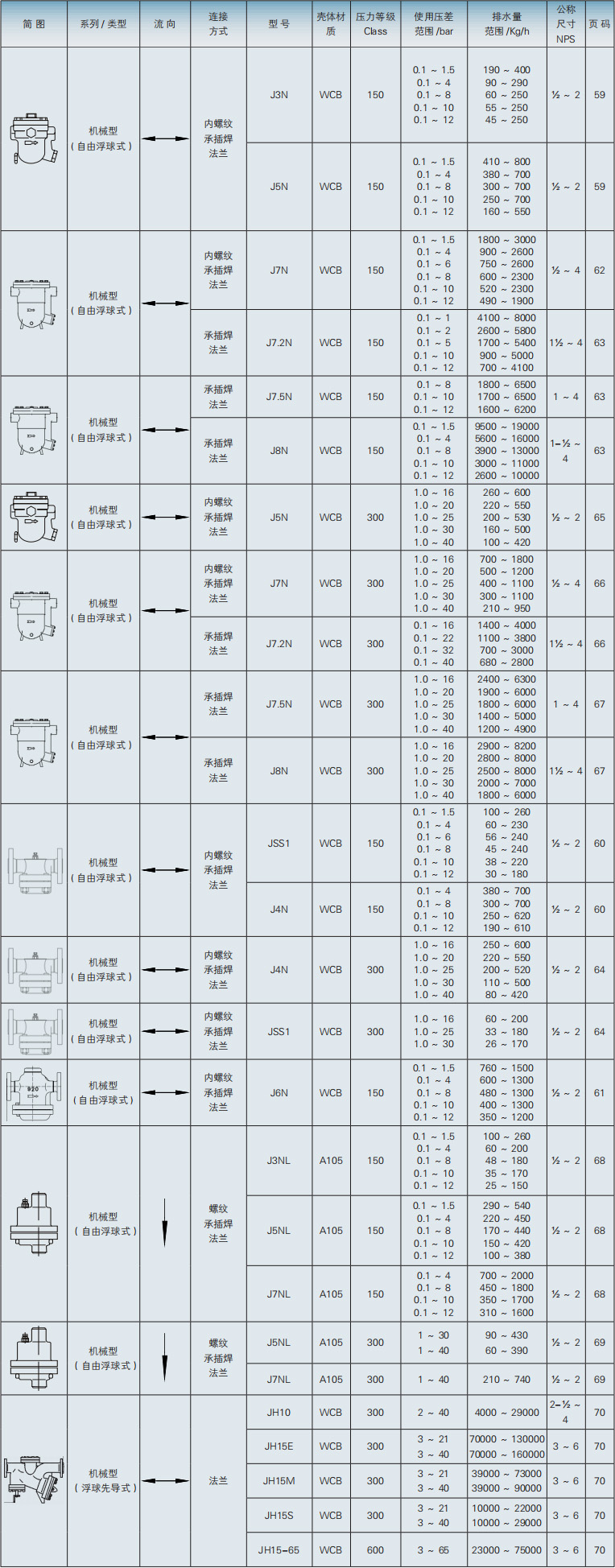

选型速查表
