ES35(20PZ)

Nominal size DN: 15 ~ 50

Connection: socket welding, flange
Nominal pressure PN: 420
Pressure difference range: MPa: 0.2 to 19.0
PMA/TMA PMa/℃ : 14.41/570
Shell material: 12Cr1MoV


Download ES35(20PZ)
Features

1. Advanced SCCV closing system, spool bracket and specially designed "super lever" match. The spool is "free floating" in the spool bracket, avoiding rigid collisions when closed.

2. There is a water seal and lifting mechanism inside the bucket, so there is no steam leakage.

3. The top of the bucket is provided with an exhaust hole, which can effectively prevent the phenomenon of steam lock and air blockage (non-condensing high temperature air can also be excluded).

4.Can withstand high back pressure (up to 90%).

5. Water shock resistance.

6. All internals are fixed on the valve cover for easy online maintenance.

Usage: Used for equipment of medium and low pressure and steam condensate flow.

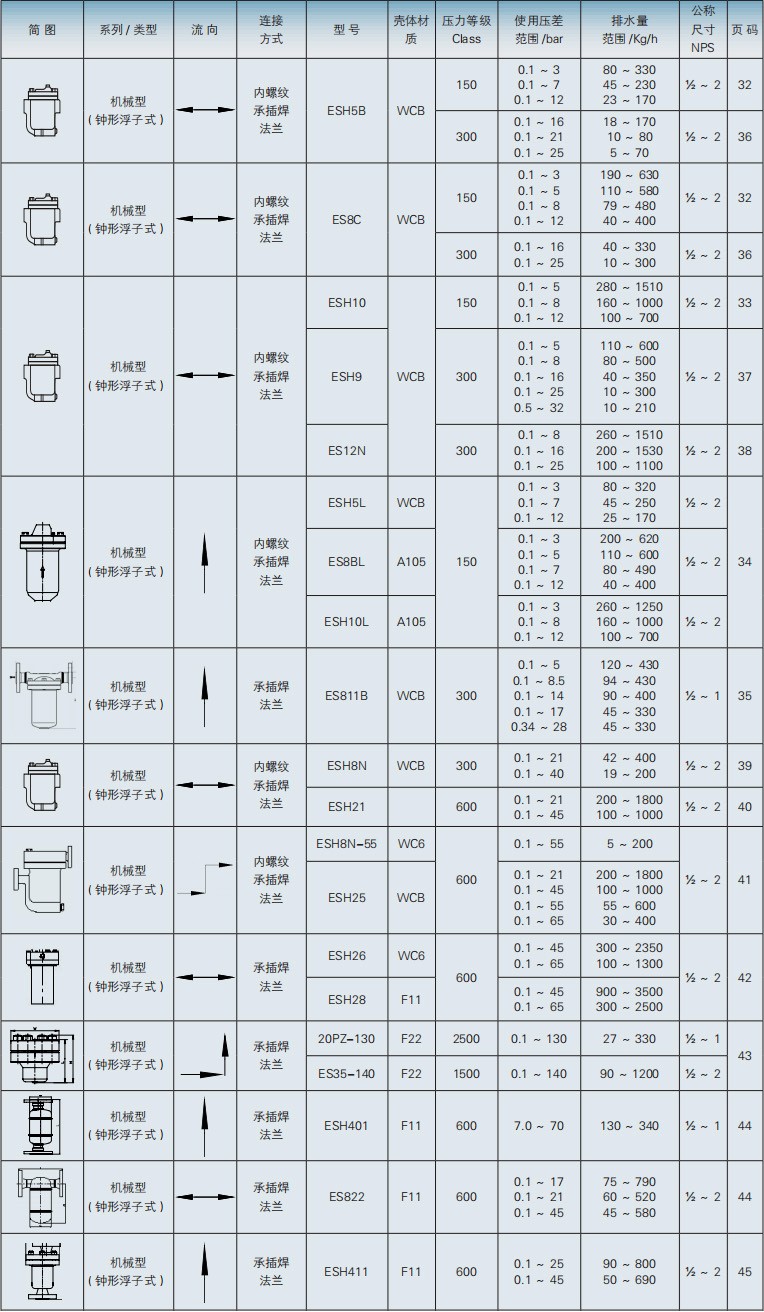

选型速查表
