AGH25

Nominal size DN: 50~150

Connection: flange

Nominal pressure PN: PN25

Differential pressure range MPa: 0.01~1.

PMA/TMA  PMa/℃:1.7/260

Housing Material: WCB

Download AGH25
Features

1. The lever float trap with a certain capacity can automatically discharge the liquid with a specific gravity of 0.5-1 from the gas system, and is equipped with a pressure equalizing pipe joint.

2. Due to the change of flow rate, the liquid is continuously discharged, and the valve opening is automatically adjusted.

3. The float is corrosion-resistant, high-pressure and durable.

4. The back pressure rate can reach 80%, which is convenient for maintenance.

Uses: used in petroleum, chemical, textile, metallurgical and other industries air, gas and other gas systems, the specific gravity is less than that of water of various liquids or oils, etc.

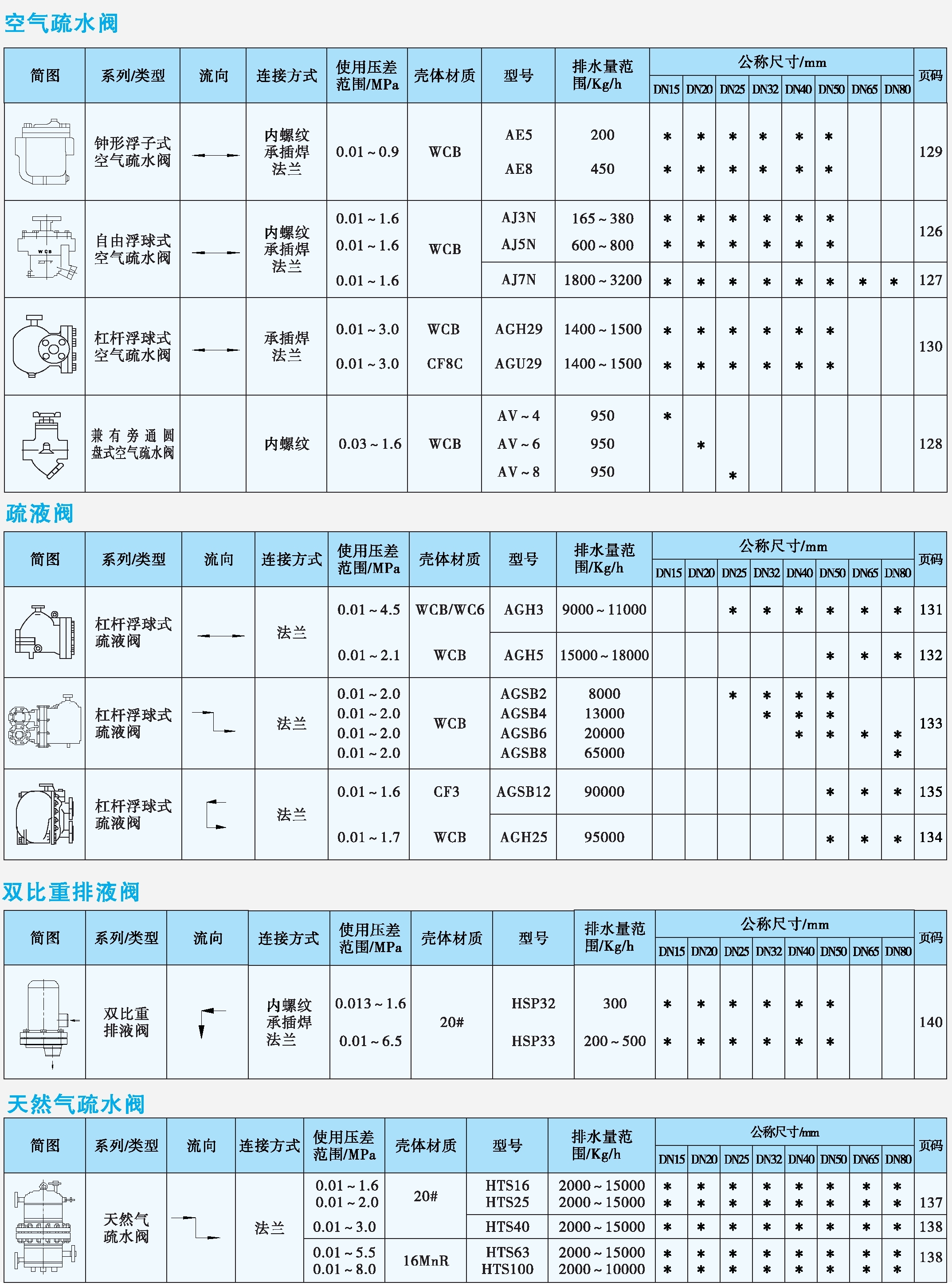

Air (natural gas) traps, traps, traps, drain valves selection cheat sheet
