P41(2)X-10 quick exhaust valve

Working medium: clean water

Operating temperature: normal temperature

Working pressure: 1.0MPa

Nominal pressure PN: PN10

Body: HT200

Float: 304 stainless steel

Body strength pressure: 1.6MPa

Air seal test pressure: 0.05MPa~1.6MPa no water leakage

Download P41(2)X-10 quick exhaust valve
Features

(1) It can remove the gas in the pipeline, reduce the resistance, and save energy.

(2) The exhaust capacity is many times that of the ordinary double-port exhaust valve.

(3) When the pipeline is under negative pressure, this product can quickly and automatically suction to prevent the pipeline from making an exception.

(4) The float is stainless steel, which has a long service life, safe and reliable.

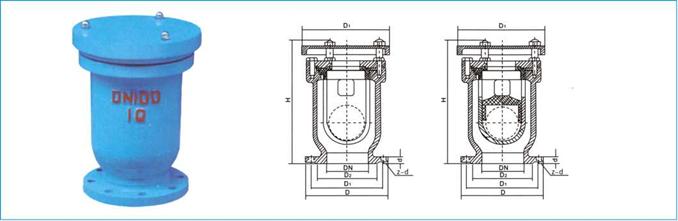

Product Structure:

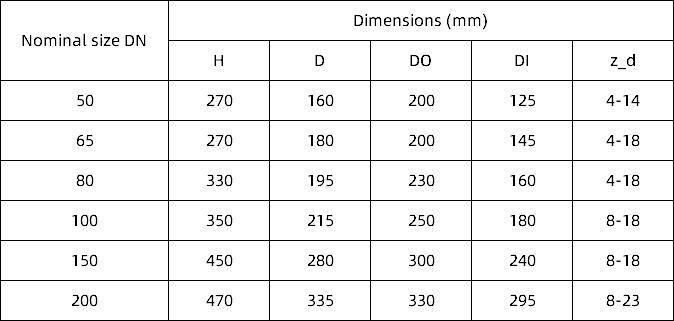

Main Dimensions:

P41_3en

Selection cheat sheet
