CS14F

Nominal size DN: 15~20

Connection: Female thread

Nominal pressure PN: PN25

Differential pressure range MPa: 0.05~1.6

PMA/TMA  PMa/℃: 1.7/260

Temperature adjustment range/°C: 80~100

Housing Material: WCB

Download CS14F
Features

1. The discharge temperature can be adjusted, and the sensible heat of condensate can be effectively utilized, and the energy-saving effect is good.

2. It is not affected by vibration, steam pressure fluctuation and water hammer.

3. Continuous drainage, noiseless, corrosion-resistant, long service life.

4. Compact structure, easy maintenance and installation.

Uses: Used in petroleum, chemical, metallurgy, rubber, pharmaceutical and other steam heating pipelines and heating, instrument insulation systems.

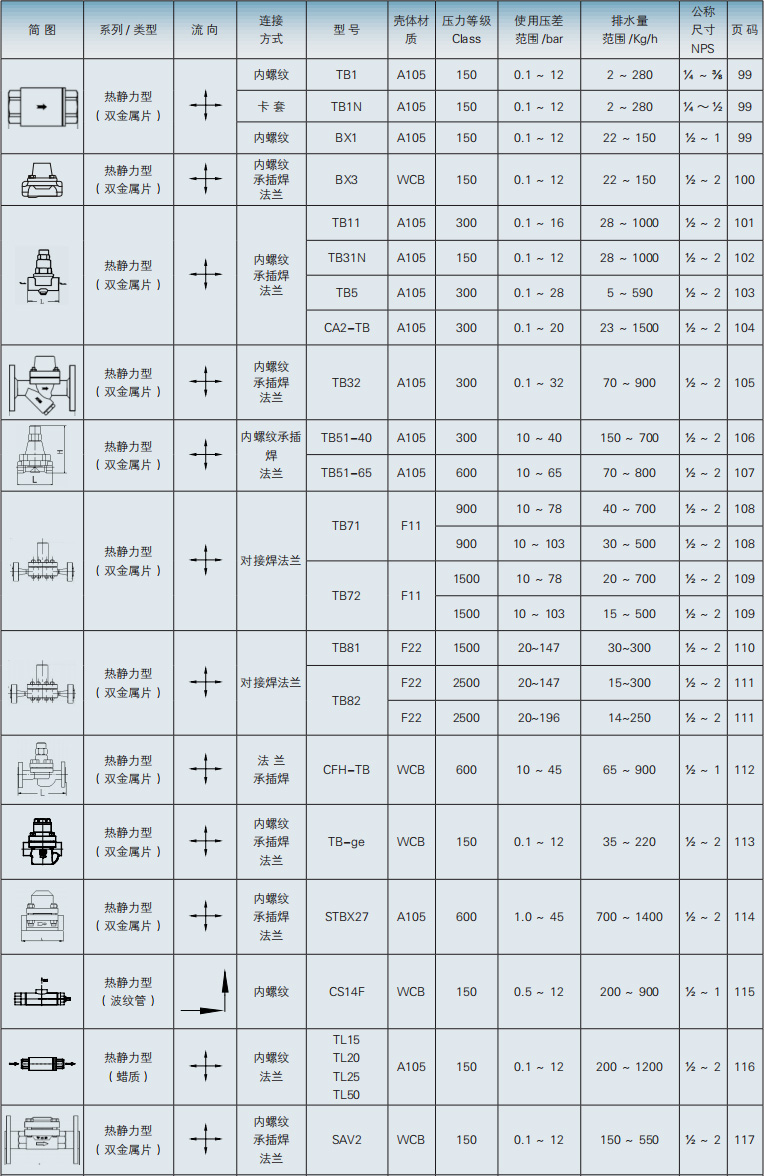

Selection cheat sheet
