XDER80

Nominal size DN: 100

Connection: flange

Nominal pressure PN: PN100

Differential pressure range MPa: 0.5~8.0

PMA/TMA  PMa/℃: 8.0/299

Housing Material: WCB

Download XDER80
Features

1. The pilot mechanism of the inverted bucket prevents the blockage and retention of condensate.

2. The piston valve core works smoothly and has a large high-pressure displacement.

3. It has the ability of continuous air exhaust and no air blockage.

4. Installed horizontally, left in and right out.

5. All internal parts can be repaired and maintained without removing them from the pipeline.

6. Built-in special noise reduction mechanism solves the problem of large vibration and high noise under high pressure.

7. Built-in flow adjustment sleeve, which can automatically adjust the flow rate according to the flow rate.

Uses: Used in superheating or drying and other steam equipment that produces a large amount of condensate.

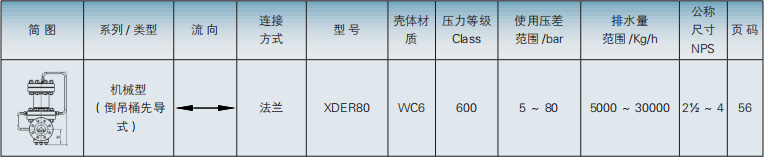

Selection cheat sheet
